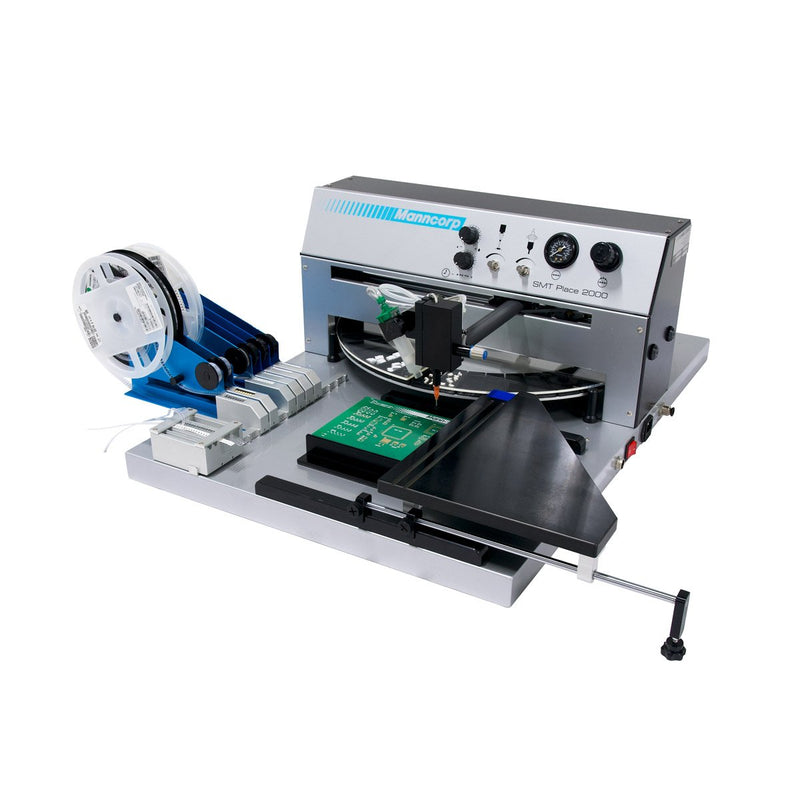

Fast, Simple, Manual Electronics Assembly
With its easy-gliding head (which rotates up to 360deg), the SMT Place 2000 is more accurate and efficient than placing components by hand. The control knob, located right on the head, makes adjusting component polarity and alignment-to-pad effortless.
Simply touching down on a component from a tape feeder or one of the unit's loose parts bins will activate the vacuum, picking up the part. Then, touching down onto the PCB will shut off the vacuum, placing the part. The pressure is fully adjustable and placement nozzles are easy to change out.
Minimize Mistakes, Ward Off Fatigue
To reduce fatigue and improve steadiness, the SMT Place 2000's armrest slides to support the operator's hand above the board during assembly. This allows more assemblies to be completed with increased accuracy over time than could otherwise be accomplished. It also keeps the operator's sleeve out of the way, preventing accidental disruption of solder paste smear or already-placed components.
No Stencils Needed
The SMT Place 2000's integrated dispense system lays down solder paste without the use of a stencil. Built-in time/pressure dispensers handle both solder paste and adhesives, with a syringe vacuum control feature that can be adjusted to prevent low-viscosity liquids from dripping out. Dots are placed using the foot pedal. "Repeat" mode allows the dispenser to continue distributing dots as long as the foot pedal is pressed (the dot interval is set using the repeat time regulator). Both dispense time and dispense pressure are fully adjustable.
SMT Place 2000 Specifications | |
---|---|
Placement Accuracy | Manual |
Placement Rate | up to 800 pph |
Components | Operator Dependant |
Component Height | top max 0.79" (20 mm), bottom 0.98" (25 mm) |
Board Size | max 11" x 8.7" (280 x 220 mm) |
Board Thickness | 0.02" (0.5 mm), max 0.12" (3.0 mm) |
Maximum Warpage | 0.04" (1 mm) up, 0.04" (1 mm) down |
Loose Parts | ESD-safe 45-bin rotating loose parts carousel with cover included |
Taped Parts | Built-in feeder base holds up to 12 tape feeders or a combination of tape feeders and tape strip feeders. Tape strip feeders hold 8 mm, 12 mm, and 16 mm strips. |
Power Requirement | 110VAC, 50-60Hz, 70W |
Air Requirement | 85psi |
Dimensions | 35.4" x 30" x 11.8" (900 x 760 x 300 mm) |
Weight | 55 lbs (25 kg) without feeders |
SMT Place 2000 Manual Pick and Place Machine Features
- X/Y guiding system and rotating head for precise positioning
- Component displacement and paste smear is prevented by built-in armrest
- Lightweight pick & place head and sliding armrest reduce operator fatigue
- Vacuum automatically turns on when the nozzle touches the component and turns off at placement, saving steps
- Magnetic support blocks for fast changeovers
- Odd-shaped and double-sided PCBs easily accommodated
- ESD-safe 45-bin loose parts carousel included
- Built-in feeder base, no need to purchase separately
- Holds twelve 8 mm and/or 12 mm tape feeders
- Cut strip holder for three 8 mm, one 12 mm and one 16 mm tape strips—ideal for prototyping and other jobs where components are purchased only in quantities needed, instead of full reels
- Integrated dispense head eliminates costly stencils

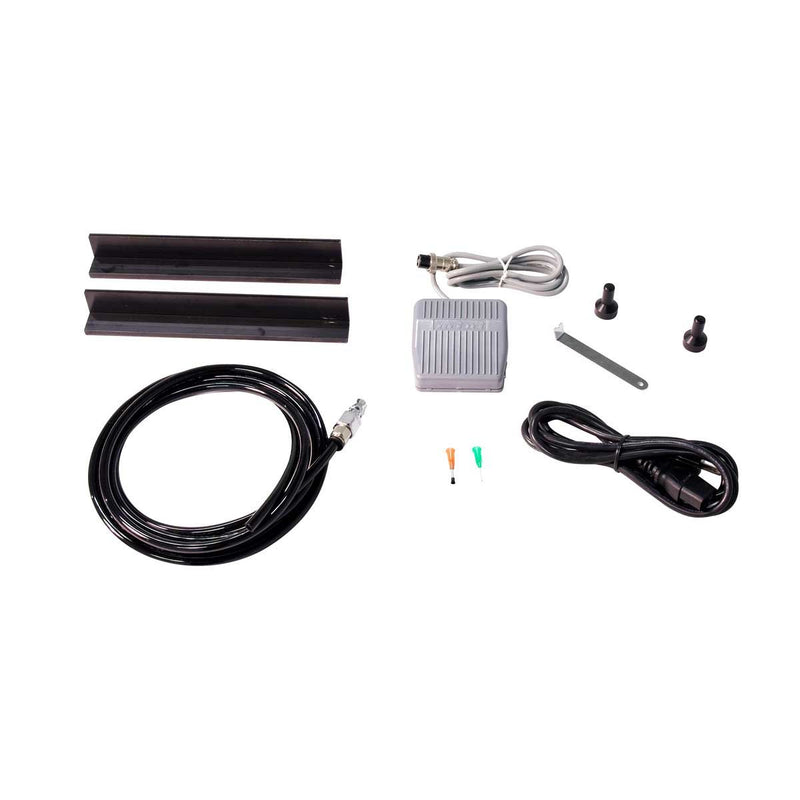

SMT Place 2000 includes:
- Manual pick & place/SMT assembly station
- 360˚ rotating placement head
- Auto on/off vacuum pressure
- Magnetic PCB blocks
- Sliding arm rest
- Loose parts carousel with 45 trays
- Integrated feeder base
- Integrated time/pressure dispenser
