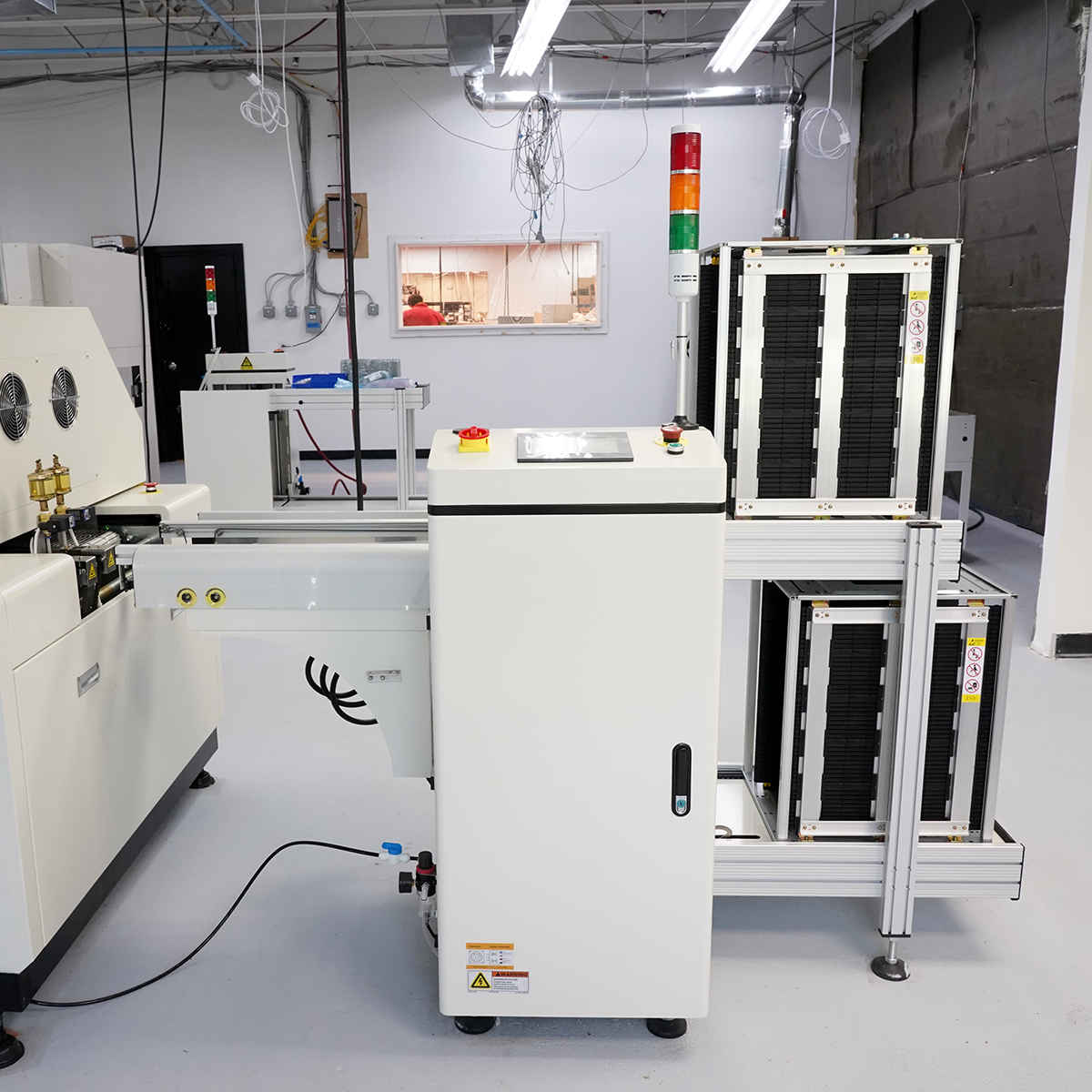

Standard PCB Magazine Unloader - UL Series

The UL Series provides cost-effective, automated PCB unloading for SMT lines using standard magazine sizes. Its compact design ensures reliable, high-throughput performance while integrating easily into existing production setups.

Optimized for uniform magazines
Compact footprint ideal for limited floor space
Automatic unloading to reduce manual handling
SMEMA-compatible and CE compliant

or for pricing

[{"id":40316104704139,"title":"250 mm \/ Small \/ Left to Right","option1":"250 mm","option2":"Small","option3":"Left to Right","sku":"UL250W-MT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Small \/ Left to Right","public_title":"250 mm \/ Small \/ Left to Right","options":["250 mm","Small","Left to Right"],"price":1499500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601601675,"title":"250 mm \/ Small \/ Right to Left","option1":"250 mm","option2":"Small","option3":"Right to Left","sku":"UL250W-MT-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Small \/ Right to Left","public_title":"250 mm \/ Small \/ Right to Left","options":["250 mm","Small","Right to Left"],"price":1499500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104736907,"title":"250 mm \/ Standard \/ Left to Right","option1":"250 mm","option2":"Standard","option3":"Left to Right","sku":"UL250W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Standard \/ Left to Right","public_title":"250 mm \/ Standard \/ Left to Right","options":["250 mm","Standard","Left to Right"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601634443,"title":"250 mm \/ Standard \/ Right to Left","option1":"250 mm","option2":"Standard","option3":"Right to Left","sku":"UL250W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 250 mm \/ Standard \/ Right to Left","public_title":"250 mm \/ Standard \/ Right to Left","options":["250 mm","Standard","Right to Left"],"price":1499500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104769675,"title":"330 mm \/ Standard \/ Left to Right","option1":"330 mm","option2":"Standard","option3":"Left to Right","sku":"UL330W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 330 mm \/ Standard \/ Left to Right","public_title":"330 mm \/ Standard \/ Left to Right","options":["330 mm","Standard","Left to Right"],"price":1699500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601667211,"title":"330 mm \/ Standard \/ Right to Left","option1":"330 mm","option2":"Standard","option3":"Right to Left","sku":"UL330W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 330 mm \/ Standard \/ Right to Left","public_title":"330 mm \/ Standard \/ Right to Left","options":["330 mm","Standard","Right to Left"],"price":1699500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104802443,"title":"390 mm \/ Standard \/ Left to Right","option1":"390 mm","option2":"Standard","option3":"Left to Right","sku":"UL390W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 390 mm \/ Standard \/ Left to Right","public_title":"390 mm \/ Standard \/ Left to Right","options":["390 mm","Standard","Left to Right"],"price":1899500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601699979,"title":"390 mm \/ Standard \/ Right to Left","option1":"390 mm","option2":"Standard","option3":"Right to Left","sku":"UL390W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 390 mm \/ Standard \/ Right to Left","public_title":"390 mm \/ Standard \/ Right to Left","options":["390 mm","Standard","Right to Left"],"price":1899500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104835211,"title":"460 mm \/ Standard \/ Left to Right","option1":"460 mm","option2":"Standard","option3":"Left to Right","sku":"UL460W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 460 mm \/ Standard \/ Left to Right","public_title":"460 mm \/ Standard \/ Left to Right","options":["460 mm","Standard","Left to Right"],"price":1999500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321601732747,"title":"460 mm \/ Standard \/ Right to Left","option1":"460 mm","option2":"Standard","option3":"Right to Left","sku":"UL460W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Unloader - UL Series - 460 mm \/ Standard \/ Right to Left","public_title":"460 mm \/ Standard \/ Right to Left","options":["460 mm","Standard","Right to Left"],"price":1999500,"weight":147418,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

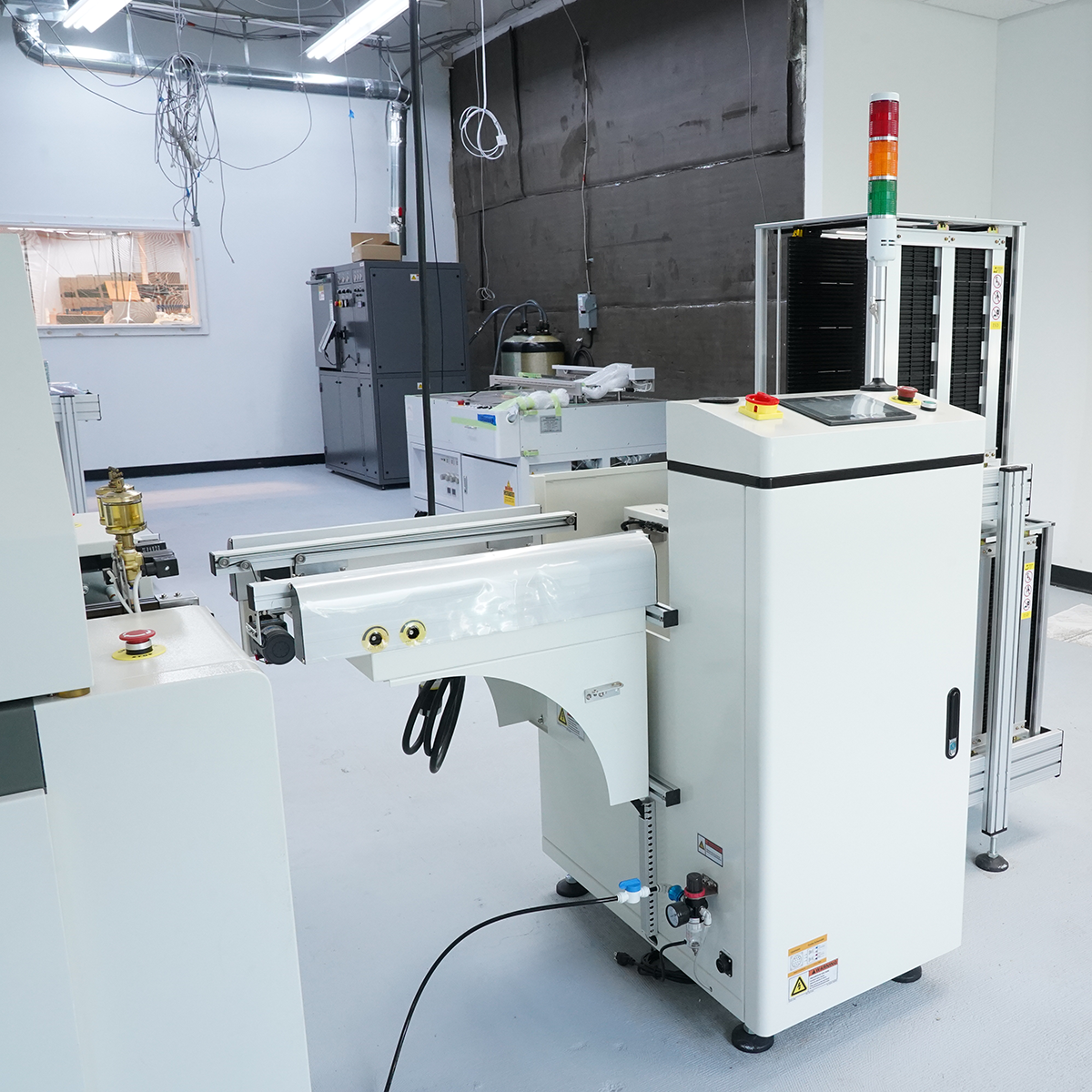

Automated Magazine Unloading for Consistent Output

The UL Series automatically unloads assembled PCBs into magazines, ensuring smooth, continuous handling while reducing manual intervention in high-volume SMT production.

Automatic PCB unloading into magazines
Continuous operation with indexed magazine positioning
Reduces manual handling and improves throughput

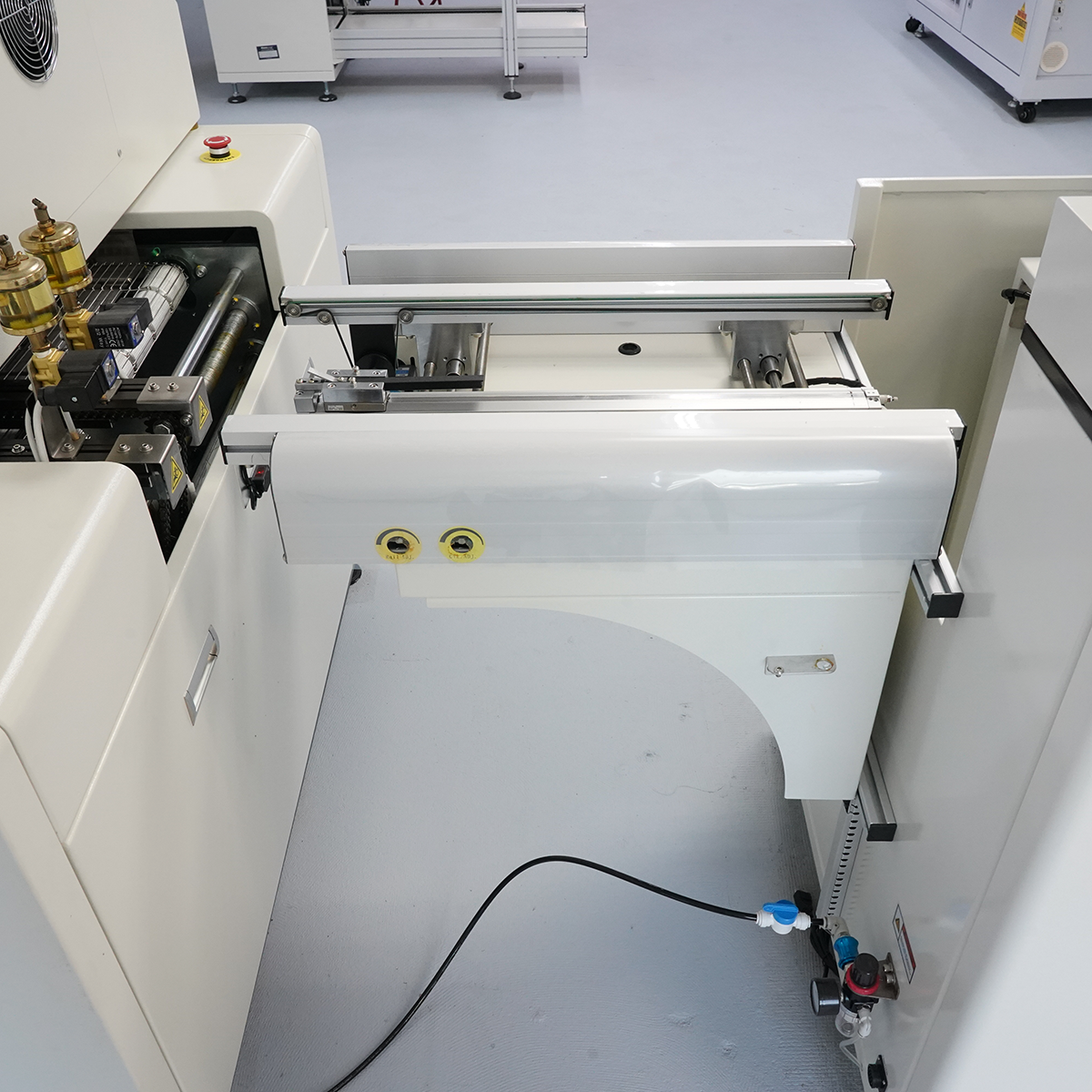

Integrated transfer from production line to magazine

Efficient Operation & Reliable Handling

Designed for standardized magazine sizes, the system delivers precise positioning, durable construction, and easy operation for dependable performance.

Dedicated models: 250, 330, 390, 460 mm
Selectable pitch: 10, 20, 30, 40 mm
Pneumatic pusher for controlled PCB transfer
Cast aluminum lift platform for durability
HMI interface with status light tower & alarm
ESD-safe handling for sensitive electronics

MODEL	UL250WST UL250WMT	UL330WST	UL390WST	UL460WST

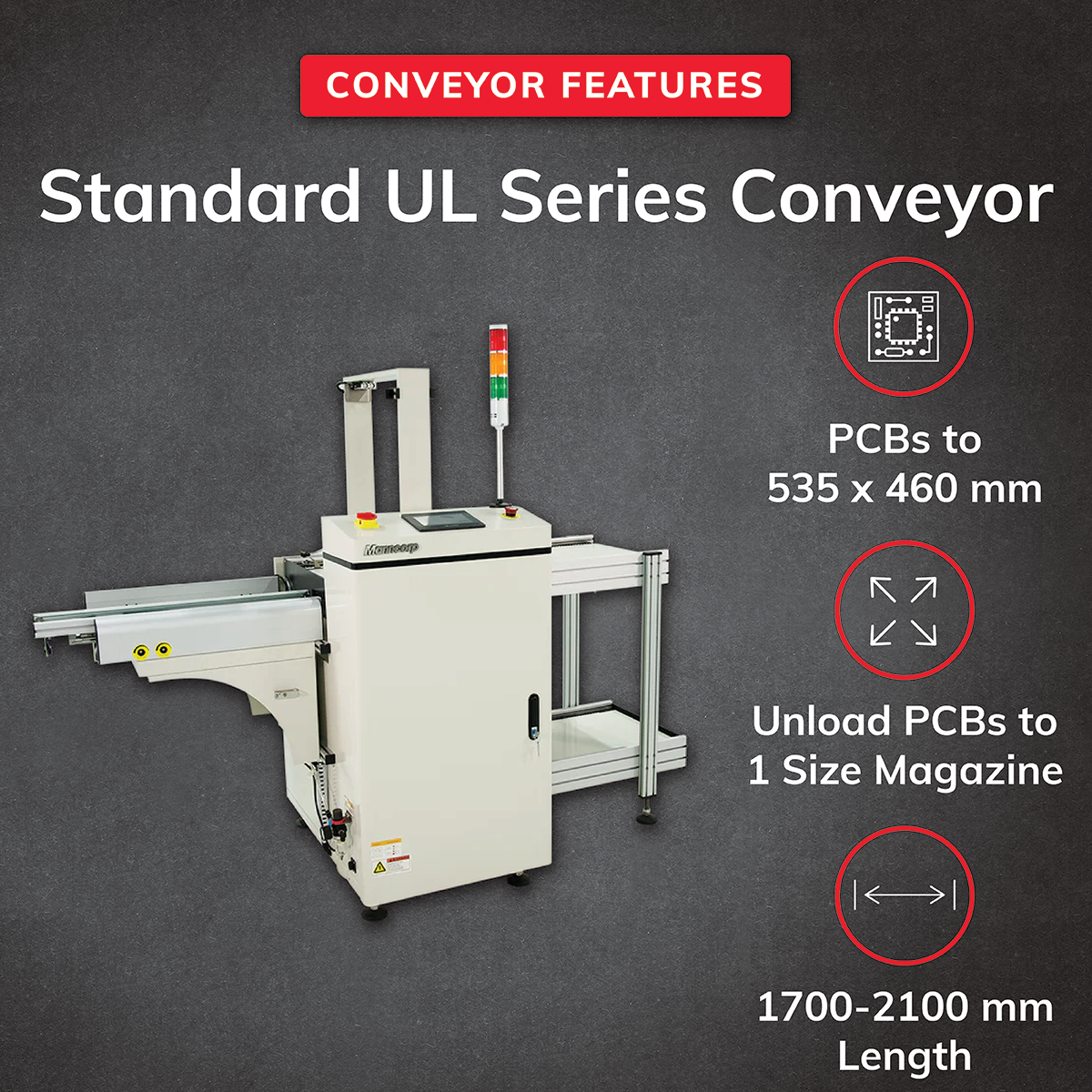

PCB Size	50 x 50 mm to 350 x 250 mm (1.97" x 1.97" to 13.78" x 9.84")	50 x 50 mm to 460 x 330 mm (1.97" x 1.97" to 18.11" x 12.99")	50 x 50 mm to 535 x 390 mm (1.97" x 1.97" to 21.06" x 15.35")	120 x 120 mm to 535 x 460 mm (4.72" x 4.72" to 21.06" x 18.11")
Magazine Size	355 mm L x 320 mm W x 563 mm H (13.98" L x 12.60" W x 22.17" H)	460 mm L x 400 mm W x 563 mm H (18.11" L x 15.75" W x 22.17" H)	535 mm L x 460 mm W x 570 mm H (21.06" L x 18.11" W x 22.44" H)	535 mm L x 530 mm W x 570 mm H (21.06" L x 20.87" W x 22.44" H)

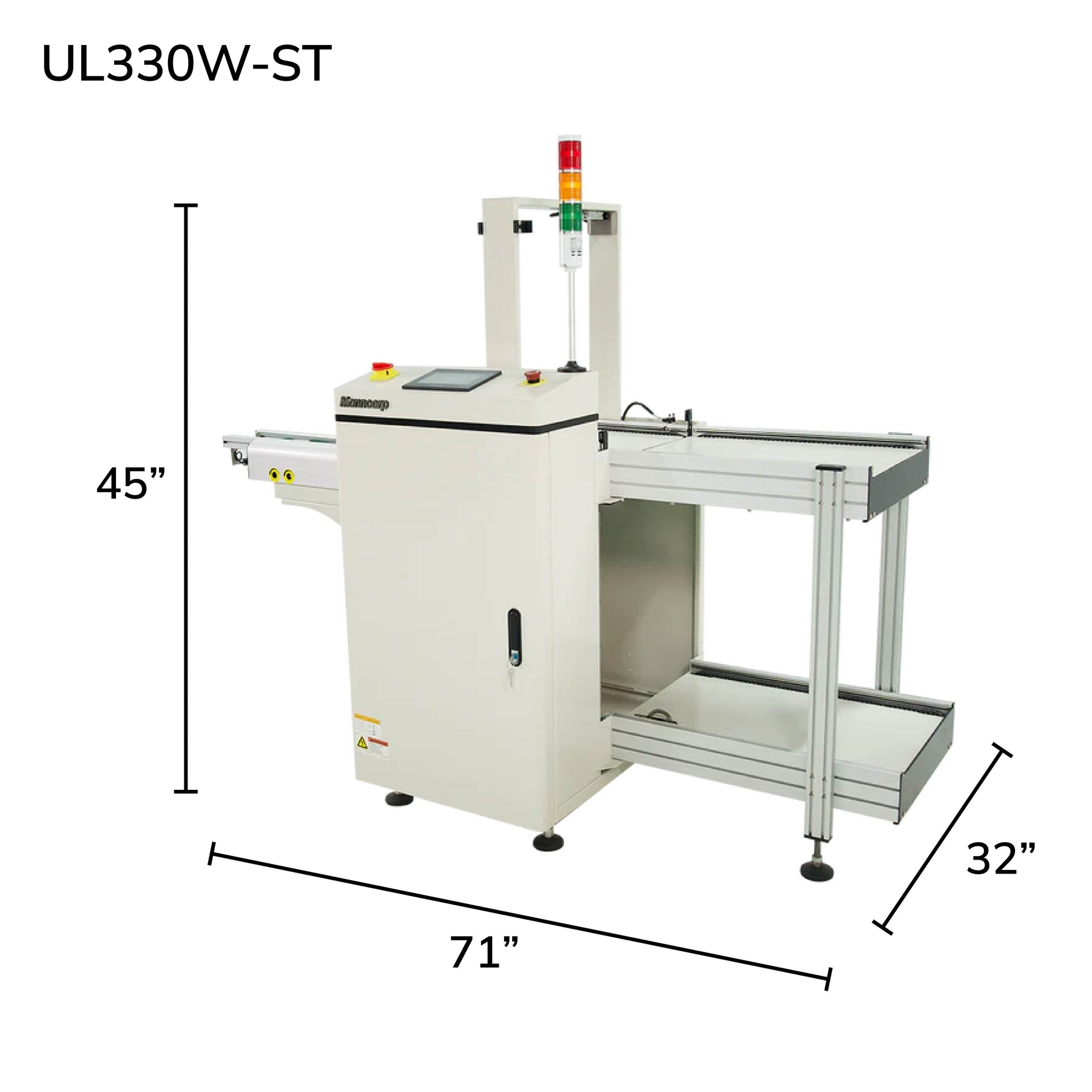

Machine Dimensions	UL250WST: 1700 mm L x 740 mm W x 1150 mm H (67" x 29" x 45") UL250WMT: 1450 mm L x 740 mm W x 1150 mm H (57" x 29" x 45")	1800 mm L x 820 mm W x 1150 mm H (71" L x 32" W x 45" H)	2000 mm L x 880 mm W x 1150 mm H (79" L x 35" W x 45" H)	2100 mm L x 960 mm W x 1150 mm H (83" L x 38" W x 45" H)
Net Weight	UL250WST: 160 kg (353 lbs.) UL250WMT: 145 kg (320 lbs.)	220 kg (485 lbs.)	280 kg (617 lbs.)	320 kg (705 lbs.)
Shipping Weight	UL250WST: 200 kg (440 lbs.) UL250WMT: 185 kg (408 lbs.)	260 kg (573 lbs.)	320 kg (705 lbs.)	360 kg (794 lbs.)
Selectable Pitch	10, 20, 30, 40 mm
Conveyor Direction	Left to right (standard) or right to left (optional)
PCB Thickness	0.4 mm min. (0.016" min.)
Air Supply Pressure	70-85 psi
Air Consumption	.35 CFM
Voltage	110 VAC
Power	300 VA max.
