Ultrafast, High-Precision Counting

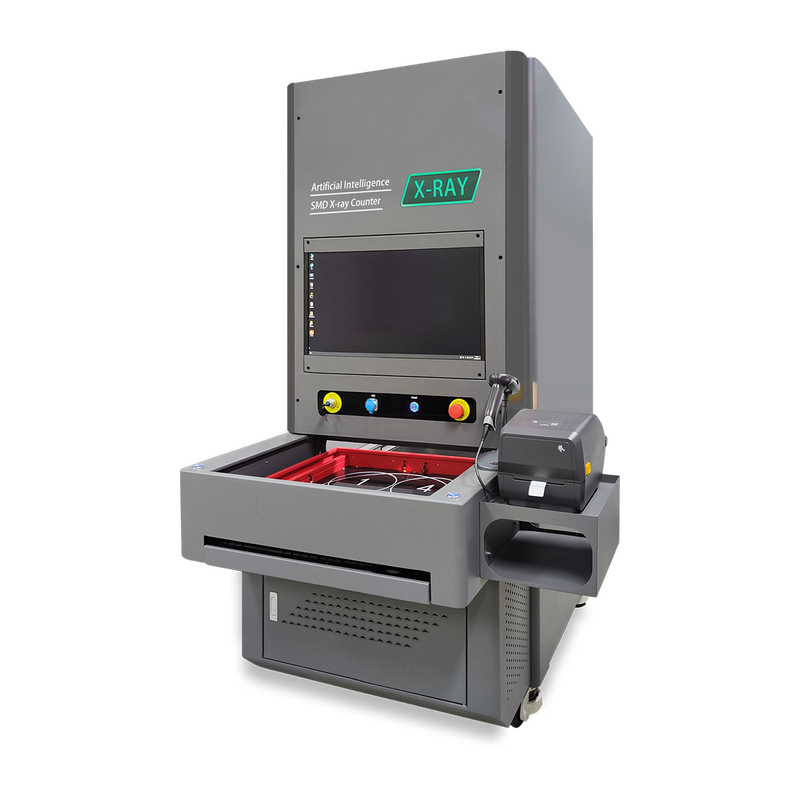

The XC01 delivers extremely fast, accurate counting using advanced X-ray imaging.
- <10 sec counting: up to 4 reels at once
- High accuracy: up to 99.98% for 01005 components
- 80kV X-ray + HD detector: precise internal imaging
AI-Powered Smart Functionality
Built-in AI automatically adapts counting based on reel type and continuously improves performance.
- Auto recognition: no manual mode switching
- Deep learning: ongoing performance improvement
- System integration: MES, ERP, WMS compatible
Automatic Code Scanning and Label Printing
The XC01 streamlines workflow by combining scanning, counting, and labeling in one step.
- Auto barcode scan: instant identification
- One-step operation: scan, count, print
- Smart detection: handles single or multiple reels
Large Reel and Tray Compatibility
The system supports a wide range of reel sizes and packaging formats.
- Up to 17" reels: large-format compatibility
- Tray support: flexible handling
- Sealed MBB counting: no opening required
Full Data Tracking and Integration
The XC01 provides complete traceability and data management.
- Work order tracking: link counts to production
- History + analytics: query and analyze data
- Real-time connectivity: sync with inventory systems
| X-Ray Source | |
|---|---|
| Type | Integrated, microfocus |
| Max. Tube Voltage | 80kV |
| Max. Tube Current | 700 µA |
| Focal Spot Size | 30 µm |
| Flat Panel Detector | |
| Type | Super definition digital FPD |
| Effective Area | 430 mm x 430 mm |
| Pixel Size | 139 µm |
| Resolution | 3072 x 3072 |
| Reel/Tray Counting | |
| Max Size | 17" (430 mm) |
| Max Thickness | 88 mm |
| Min Parts Size | 01005 |
| Speed | 7-10 seconds |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Equipment | |
| Dimensions | 1000 mm (L) x 1300 mm (W) x 1820 mm (H) |
| Weight | 580 kg |
| Power Supply | AC 220V 50/60Hz |
| Max Power | 800W |
| Industrial PC | I7 CPU, 16GB RAM, 256GB SSD +4T HDD |
| Displayer | 24" HDMI LCD |
| Other Functions | |
| Auto Code Scanning | Barcode and QR Code |
| Label Printing | Print the corresponding label when user takes out a reel. |
| Counting Record | Inquiry by time range, work order number |
| Management System Connection | MES, ERP, WMS, etc. |
| Mode Switiching | No need to switch single/multi-reel mode |
| Work Order No. | Support work order number recording |
| Safety | |
| Radiation Leakage | No leakage, international standard: ≤1μSv/h |
| Back Door Safety Interlock | Once users open the back door, the x-ray tube will power off immediately. When the back door is open, users cannot turn on the x-ray. |
| Anti-Pinch | Safety light curtain covers the whole drawer, the drawer will stop immediately when something enters. |
| Emergency Stop | In front of the operation position, press to power off. |
