Closed-Loop Cleaning with Complete Process Control

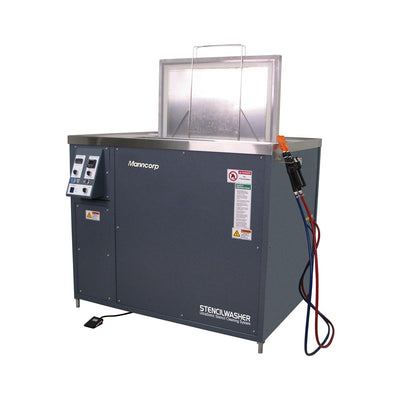

The StencilWasher ZDO combines wash, rinse, and drying in a fully integrated, zero-discharge system.
- Zero-discharge operation: recycles wash solution and rinse water
- Continuous deionization: maintains consistent cleaning quality
- All-stainless construction: durable and corrosion-resistant
- Programmable controls: digital timer and temperature regulation
Additional tools provide flexibility for targeted cleaning and drying when needed.
- Rinse wand: precise, manual cleaning of specific areas
- Air knife: controlled, efficient drying
Advanced Ultrasonic Cleaning Technology
The system uses controlled ultrasonic energy to remove solder paste from stencils, screens, and misprints.
- 40 kHz ultrasonic cleaning: effective yet gentle on fine features
- Removes dried paste: ideal for fine-pitch stencils
- Sweep frequency (37–43 kHz): prevents damage to delicate components
This ensures thorough cleaning without risking damage to wire bonds or sensitive structures.
Large Cleaning Capacity
The StencilWasher ZDO accommodates large stencils, screens, and misprinted PCBs in a fully immersed cleaning process.
- Max size: up to 29" × 29" (736 × 736 mm)
- Full immersion: complete, uniform cleaning coverage
| StencilWasher ZDO Specifications | |
|---|---|
| Application | Removal of all solder pastes and uncured adhesives |
| Dimensions | 30" D x 55" W x 45" H |
| Weight | 600 lbs |
| Construction | Welded tube steel frame and 16-gauge steel panels |
| Finish | Power-coat epoxy |
| Internal Plumbing | Stainless steel polypropylene |
| Electrical Requirements | 208-240 VAC 1 Ø 50 amps |
| Wash Tank Capacity | 35 gallons (132 liters) |
| Maximum Stencil Size (Full Immersion) | 29" x 29" (736.6 x 736.6 mm) |
| Discharge | None |
| Drain Requirements | 3/4" NPT (service use only) |
| Wash Cycle Timer | Digital 1-99 minutes |
| Ultrasonics | 1000-watt side-mounted transducers |
| Hand-Held Rinse Wand | Standard |
| Hand-Held Airknife | Standard |
| Wash Solution Heating | Standard |
| Wash Solution Filtration | Standard |
