5500 Dual Squeegee SMD Stencil Printer

Dual Squeege SMT Stencil Printer with Controlled Pressure from Manncorp

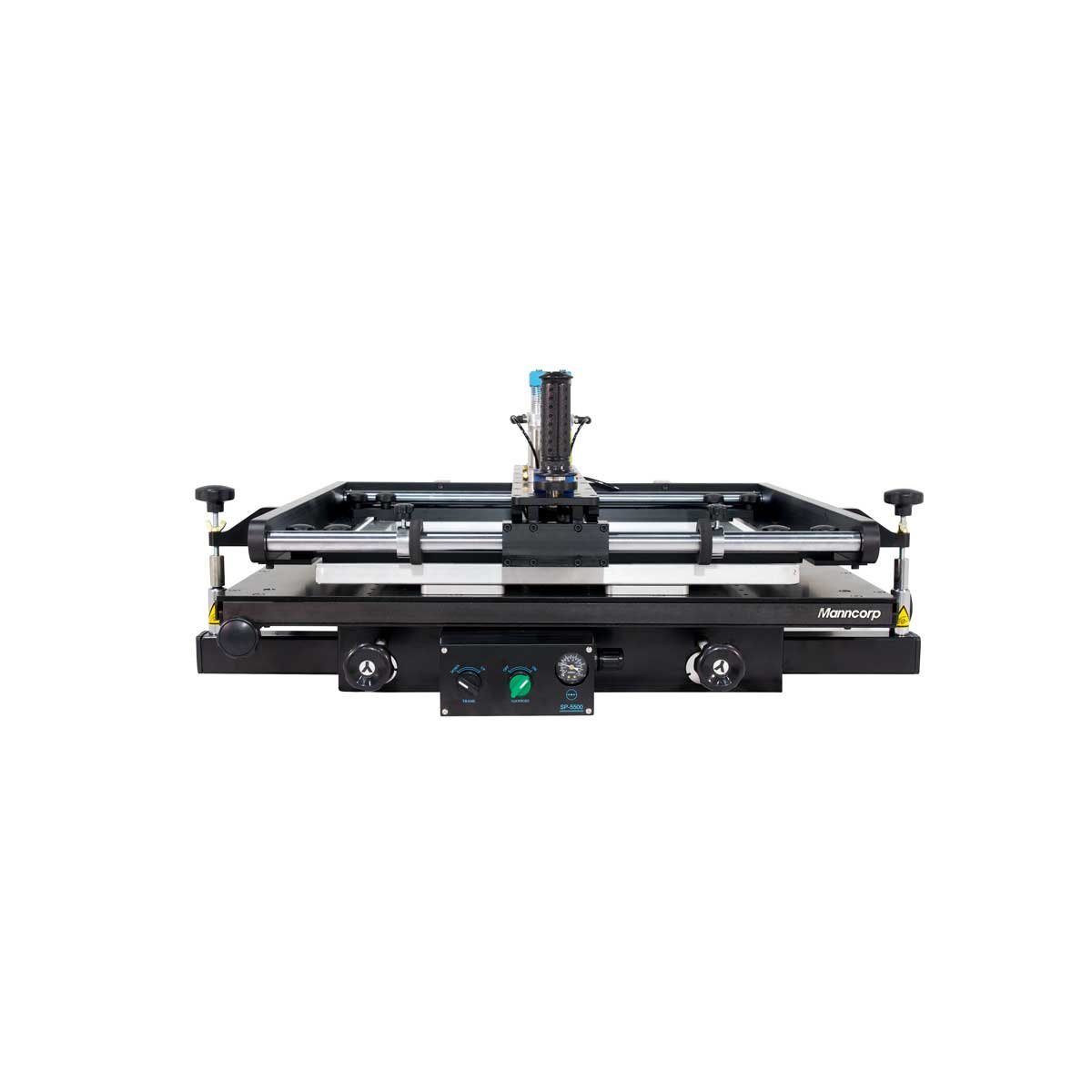

Front View: 5500 Dual Squeegee SMD Stencil Printer
5500 Dual Squeegee SMD Stencil Printer, Frame Open
Side View: 5500 Dual Squeegee SMD Stencil Printer
Top View: 5500 Dual Squeegee SMD Stencil Printer

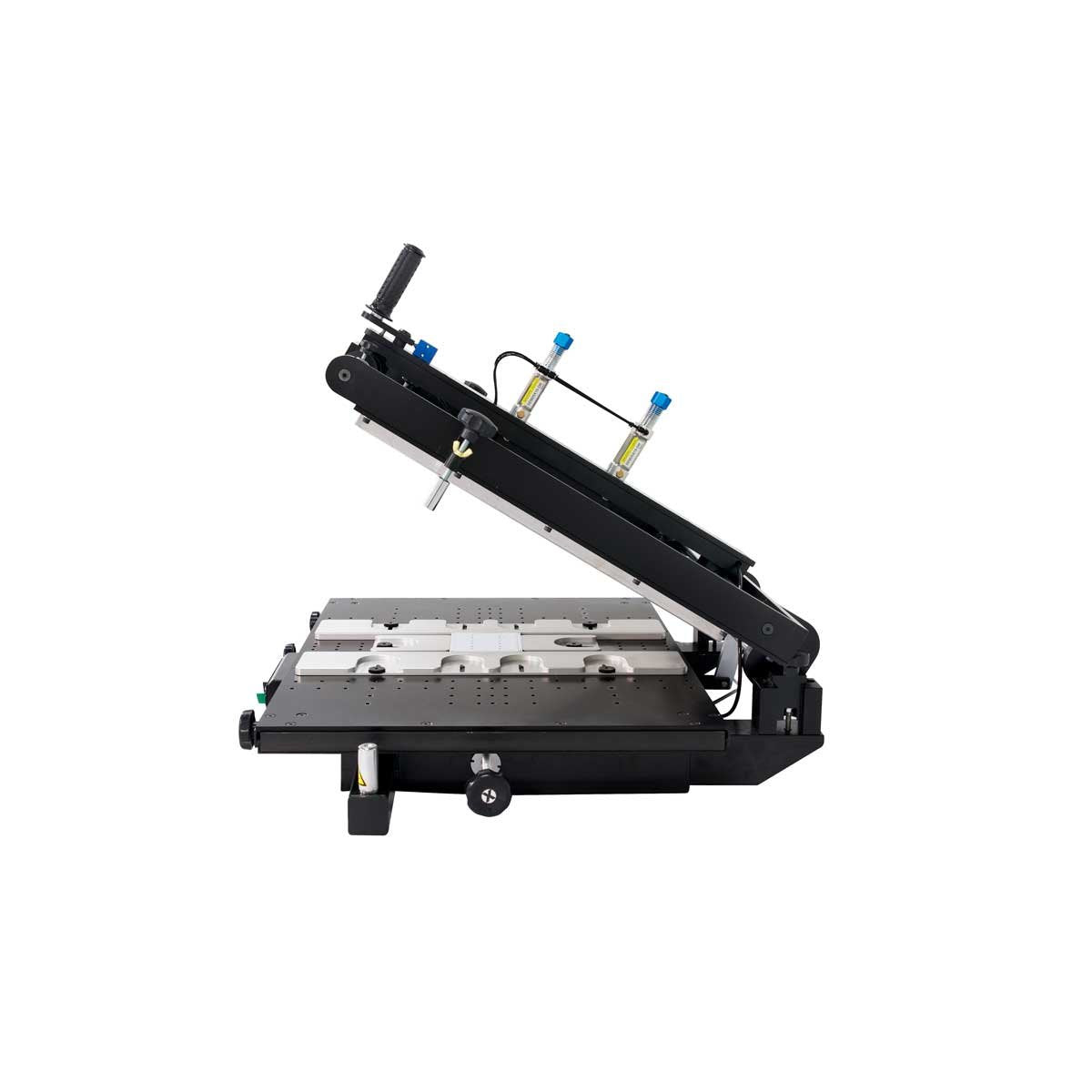

Side View, Frame Open: 5500 Dual Squeegee SMD Stencil Printer
Fame Closed: 5500 Dual Squeegee SMD Stencil Printer
Front View, Closed: 5500 Dual Squeegee SMD Stencil Printer
5500 Dual Squeegee SMD Stencil Printer
Close Up: 5500 Dual Squeegee SMD Stencil Printer, Frame Closed
5500 Dual Squeegee SMD Stencil Printer Pneumatic Squeegee Assembly
5500 Dual Squeegee SMD Stencil Printer
5500 Dual Squeegee SMD Stencil Printer: Board Shown on Tooling
5500 Dual Squeegee SMD Stencil Printer: Squeegee Control

5500 Dual Squeegee SMD Stencil Printer

The 5500 is engineered to meet the demands of an ever-changing industry; from prototyping to medium-volume production, the 5500 is an efficient, versatile, and reliable printer. Print small individual boards or large panels, the 5500 can grow with your company, meeting your production needs for years to come.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $8,495.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Even, Consistent Print Strokes

The 5500 has pneumatically controlled, dual floating squeegees that provide constant squeegee pressure throughout the print stroke, ensuring consistent prints, board after board. This machine will minimize the risks of solder bridging or solder paste bleeding under the stencil. A bidirectional squeegee design makes it possible to print on both the forward and the return strokes for greater efficiency.

Well-Defined Print Edges

After printing, the vertical lift lever is used to raise the stencil vertically, off the PCB, eliminating the risk of solder paste smearing as the stencil is opened away from the printer and ensuring well-defined print edges. The results are comparable to those produced by much more costly automated stencil printers.

Easy Setup and Changeover

  • With a Z-axis adjustable from 0" to 0.75" and no-tools-required tooling, double-sided boards are easily accommodated, as is off-contact screen printing.
  • The 5500's universal squeegee holders accept metal, polyurethane, and rubber squeegee blades. One pair of 12" metal and rubber squeegee blades are included.
  • The squeegee shuttle moves side-to-side so the operator doesn't have to reach across to the back of the machine to print.
5500 Specifications
Stencil Frame Size

300 mm x 300 mm to 600 mm x 600 mm
(12" x 12"** to 24" x 24")
**12" x 12" Stencil Requires 9" Squeegees

Work Area/Maximum PCB Size 356 mm x 430 mm (14" x 17")
X and Y Axes Range ±13 mm (±0.5")
R Axis Range ±5.0°
Z-axis Range 0-19 mm (0" - 0.75")
Underside Clearance 25 mm (1")
Air Pressure 80 psi
Dimensions 840 mm L x 920 mm W x 350 mm H
(33.1" L x 36.2" W x 13.7" H)
Net Weight Approx. 75 kg (165 lbs)
Shipping Weight Approx. 78 kg (172 lbs)
