Adjustable PCB Magazine Unloader

Adjustable PCB Magazine Unloader from Manncorp

Adjustable PCB Magazine Unloader

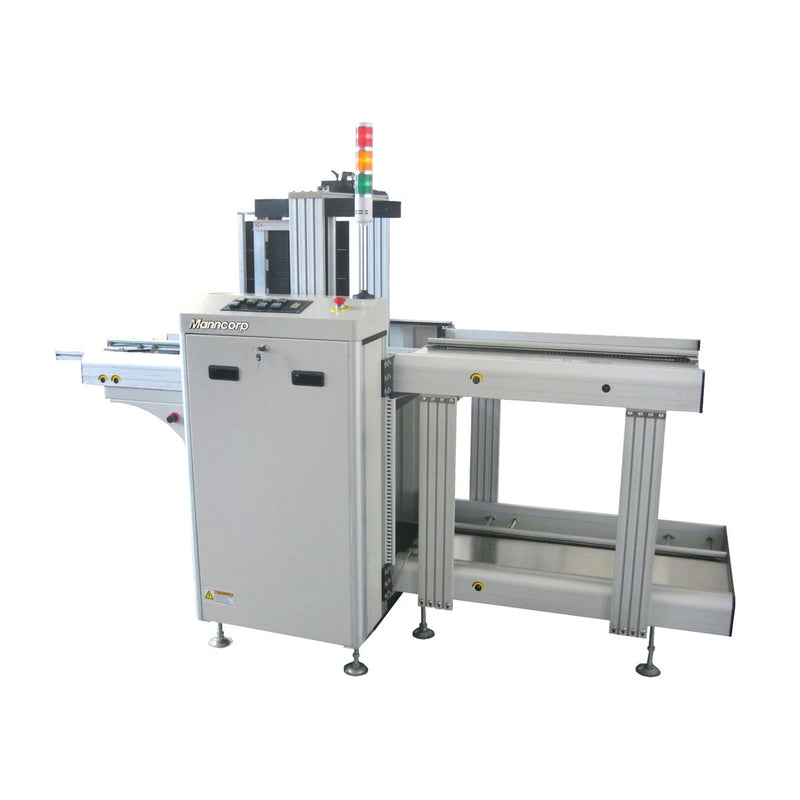

Designed for PCB assemblers who use a wide variety of PCB magazines, Manncorp's easily adjustable UL-460W-UT is used to unload PCBs from flexible production lines.

Regular price $17,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Full magazines are loaded onto the lower platform and automatically transferred to the indexing elevator which has selectable pitch settings of 10, 20, 30, and 40 mm. Full magazines are transferred to the upper platform.


The Adjustable PCB Magazine Unloader handles any magazine to 355 mm x 320 mm x 563 mm (13.98" x 12.60" x 22.17"), equivalent to the size of a CAB 601 and 701 or Nikko NKAJ 0525 Series magazine, through 535 mm x 530 mm x 570 mm (21.06" x 20.87" x 22.44"), the size of a CAB 707 or Nikko NKAJ 0546 Series magazine. Accordingly, the Adjustable PCB Magazine Unloader can accommodate PCBs to 50-530 mm (1.97-20.87") long by 50-460 mm (1.97-18.11") wide.

Note: Dedicated magazine size unloaders are available at lower cost—ideal for assemblers who don't require adjustable magazine feature.

Adjustable PCB Magazine Unloader Specifications
PCB Size 50-530 mm L x 50-460 mm W
(1.97-20.87" L x 1.97-18.11" W)
Magazine Size 355-535 mm L x 320-530 mm W x 563-570 mm H
(13.98-21.06" L x 12.60-20.87" W x 22.17-22.44" H)
Selectable Pitch 10, 20, 30, or 40 mm
Conveyor Direction Left to right (standard) or right to left (optional)
Air Supply Pressure 5-6 kg/cm2 (70-85 psi)
Air Consumption 10 l/min (0.35 CFM)
Voltage 110 VAC, 50/60 Hz
Power 300 VA max.
Machine Dimensions 2100 mm L x 740 mm W x 1150 mm H
(82.68" L x 29.13" W x 45" H)
Net Weight 315 kg (695 lbs.)
Shipping Weight 365 kg (805 lbs.)
