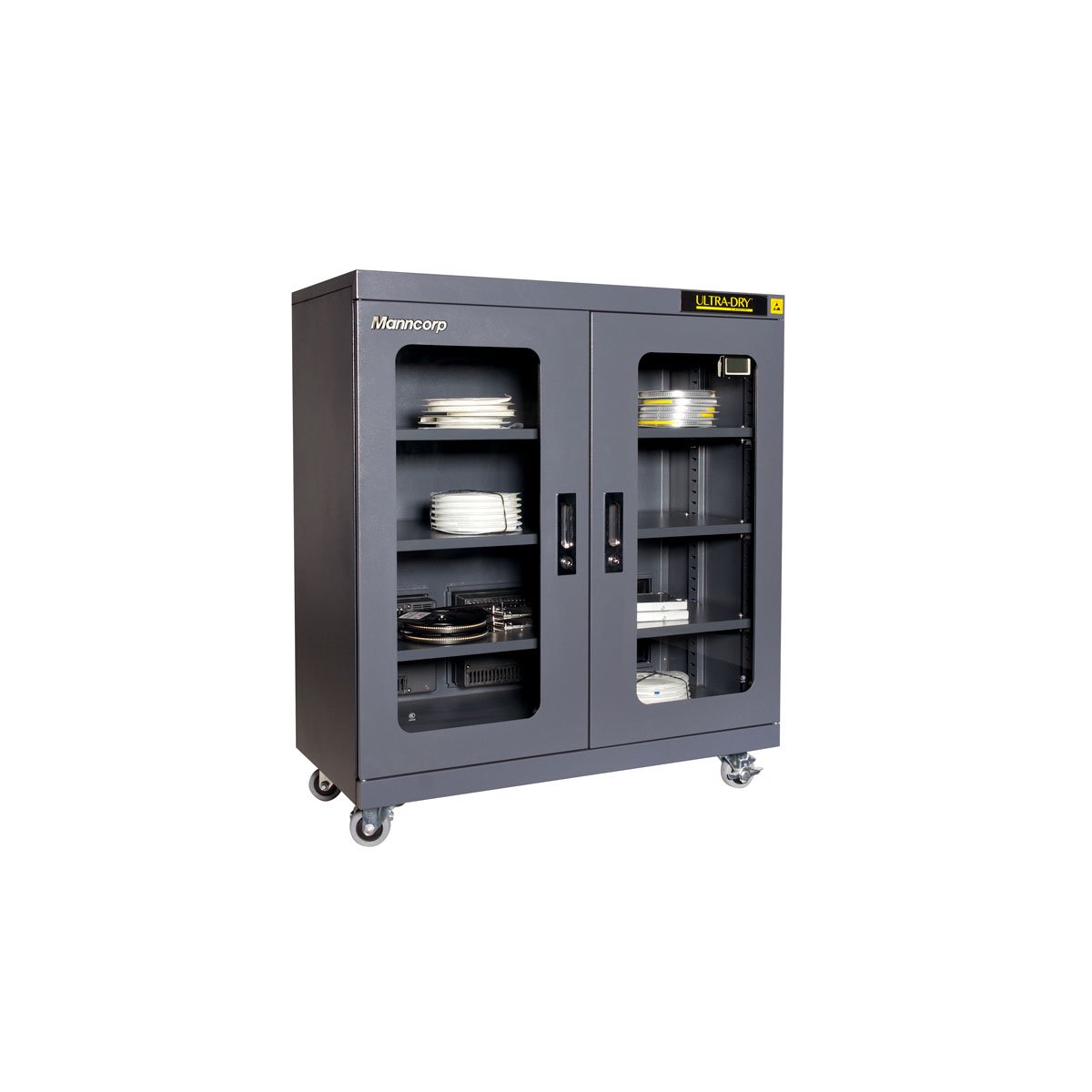

ULTRA-DRY Desiccant Dry Cabinet for MSDs - 11.8 cu. ft. from Manncorp

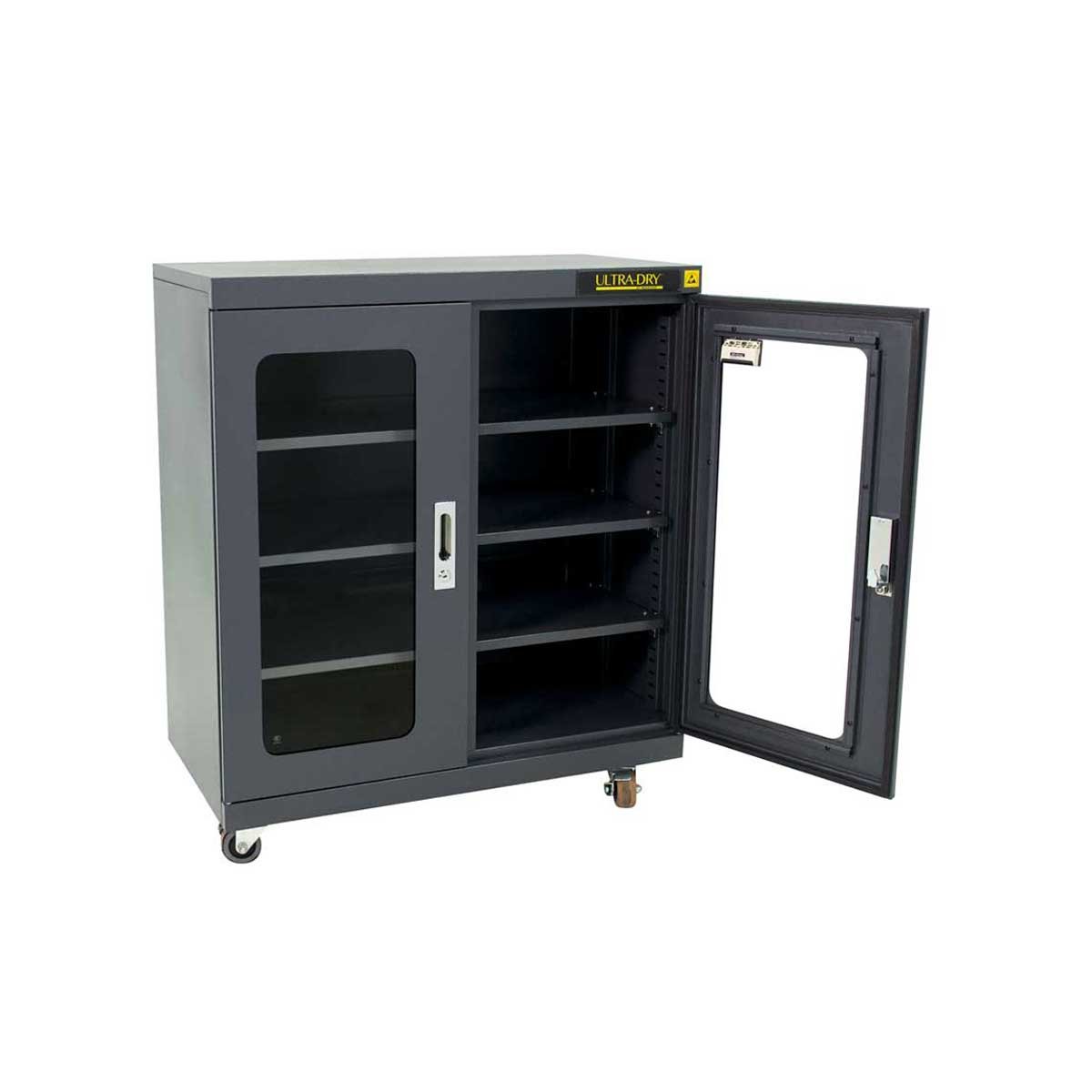

ULTRA-DRY 315V Desiccant Dry Cabinet for MSDs - Doors Open

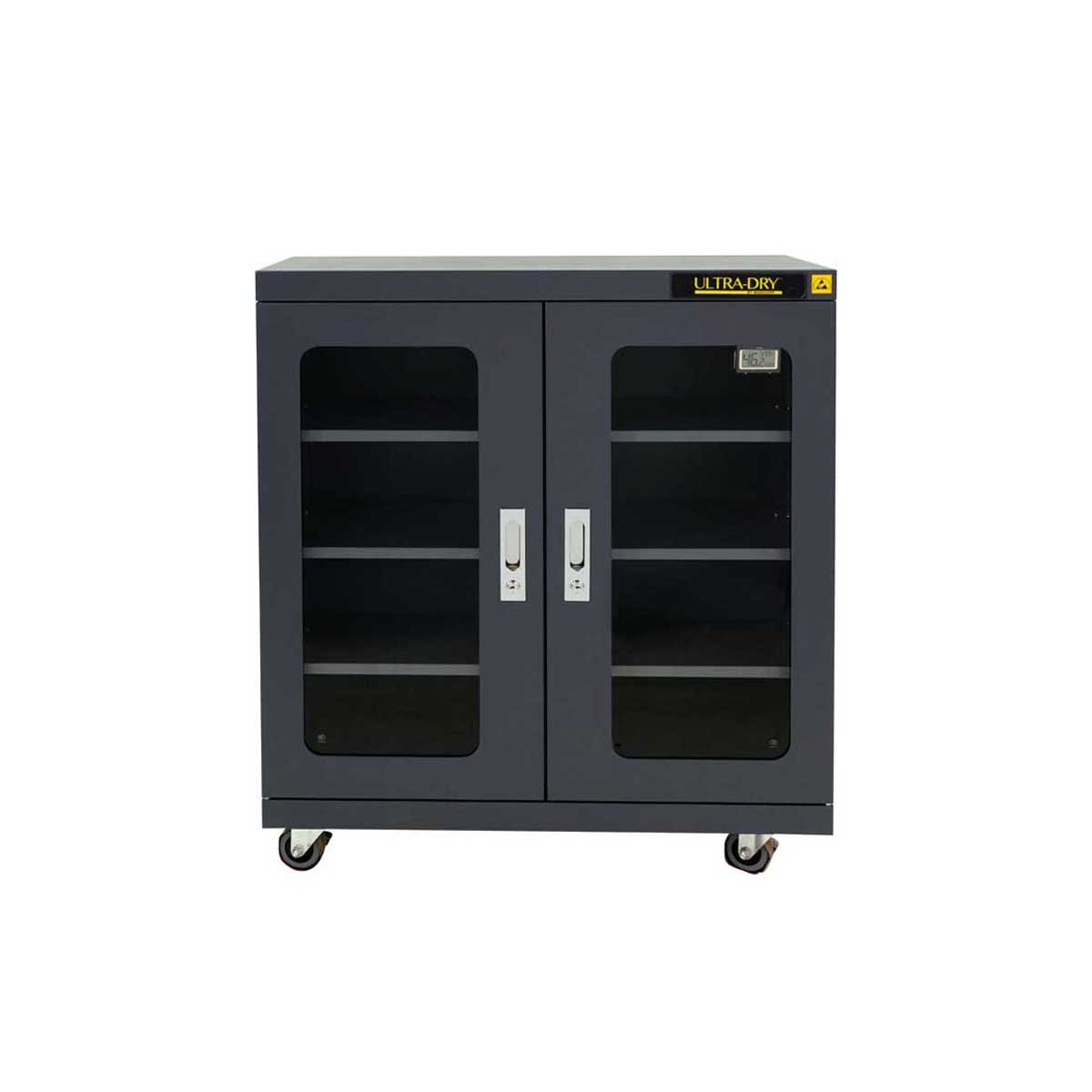

ULTRA-DRY 315V Desiccant Dry Cabinet for MSDs - Front

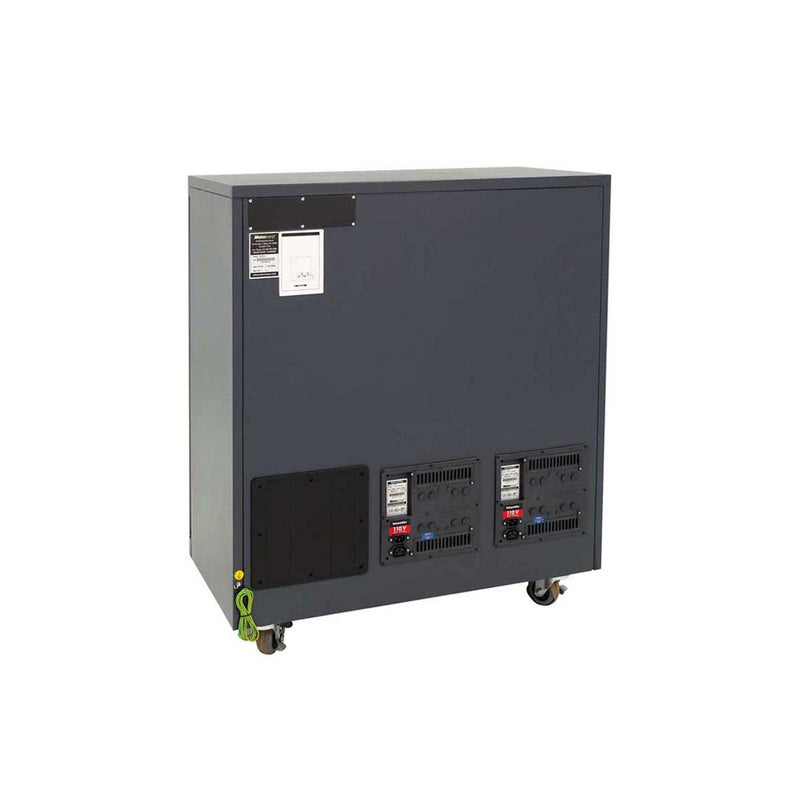

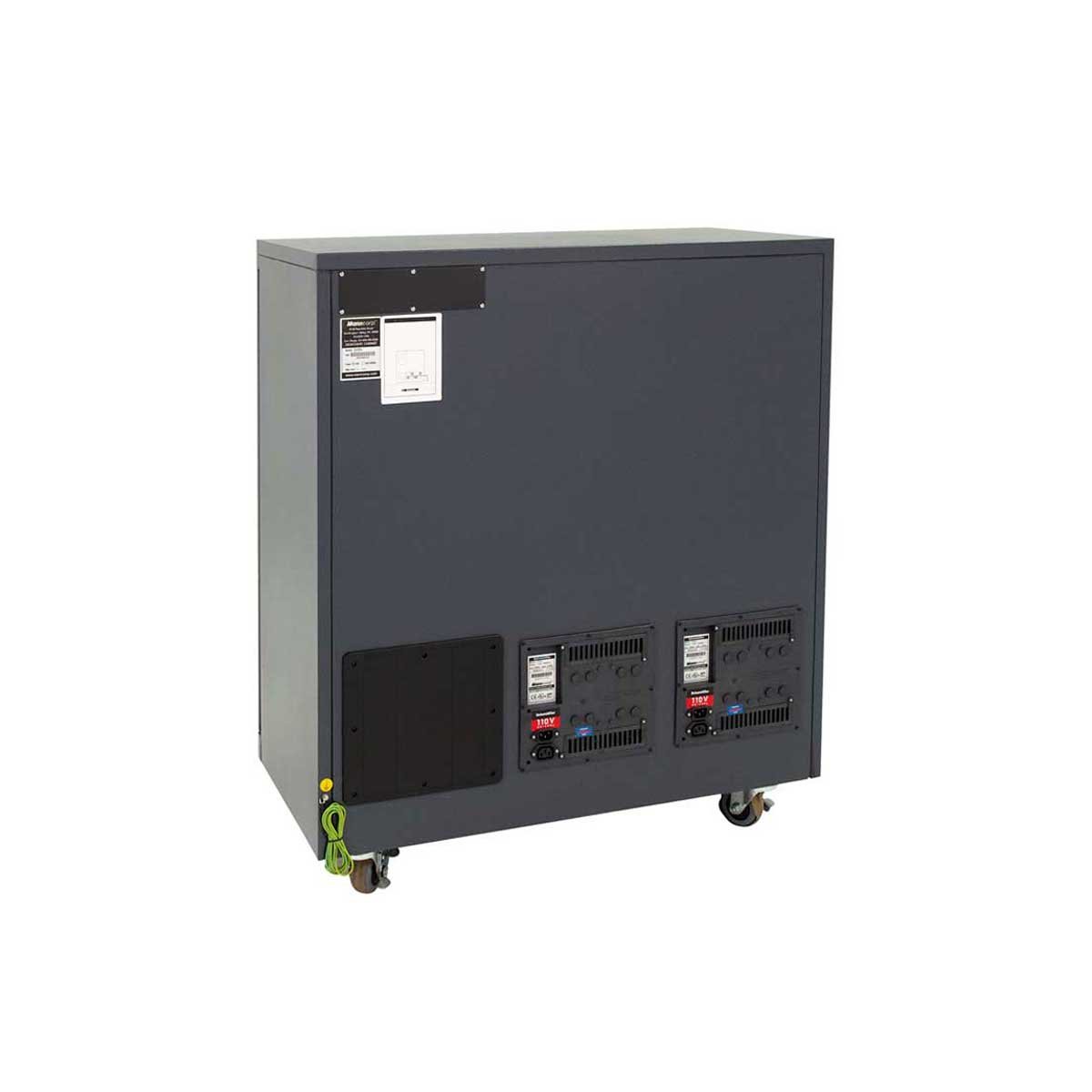

ULTRA-DRY 315V Desiccant Dry Cabinet for MSDs - Back
ULTRA-DRY 315V Desiccant Dry Cabinet for MSDs

Ultra-Dry 315V Desiccant Dry Cabinet

Space-Saving Dry Cabinet Protects Moisture-Sensitive Devices

Manncorp's Ultra-Dry "V" series desiccant cabinets eliminate the risk of serious defects and failures that result from improper storage of moisture-sensitive electronic components and assemblies. Model 315V features 11.8 cu. ft. (334 L) capacity and three adjustable shelves.

Limited time offer: Ships free in the U.S. and Canada

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $6,195.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Model 315V

Ultra-Dry 315V features a spacious interior capacity of 11.8 cu. ft. (334 L) while maintaining a compact footprint.

Model 315V at 11.8 cu. ft. (334 L) is the starter model in Manncorp's larger-volume V series dry boxes.

Although the interior is spacious, 315V's narrow depth (just 18") permits installation in minimal floor space.

Three adjustable shelves and anti-static locking wheels are included.

Prevent Moisture-Related Damage and Failures

Serious defects and failures, including many that don't show up until the product is in the field, can result from improper storage of moisture-sensitive electronic components and assemblies.

Manncorp's V series desiccant cabinets eliminate these failures, along with the risk of moisture-related defects resulting from damaged or improperly resealed moisture barrier bags (MBBs).

Eliminate Ongoing Consumable Expenses

The humidity-controlled cabinets also eliminate the ongoing expense of humidity indicator cards (HICs) and desiccant bags.

Do More With Cabinets

Unlike moisture barrier bags, dry cabinets for electronics components can be used to easily protect loaded tape and stick feeders, partially assembled PCBs, and high-layer-count or class 3 bare boards.

Low-Humidity Environment for Storage

"V" series cabinets use a stand-alone thermo-hygrometer and regenerating desiccant to provide the best possible low-humidity environment for components and assemblies. These cabinets feature two or more turbo modules designed to rapidly reduce RH levels to ≤5% without the use of nitrogen or compressed air.

An RH of ≤5% is significantly lower than specified by IPC/JEDEC J-STD-033C—far more than enough to prevent moisture traces that cause microcracking, popcorning, delamination and solder joint failures.

Nitrogen Environment Available

Nitrogen systems are available as an option.

What If Your Components Have Already Been Exposed to Moisture?

Don't throw them out! Their shelf life can be fully restored using a low-temperature baking cabinet. Ultra Dry model 490H offers similar storage capacity to the 315V with a safe, effective low-temperature bake function added to renew exposed components.

MODEL 157V 290V 315V 490V 790V 1490V
Electrical Requirements 110V 110V 110V 110V 110V 110V
External Size L/W/H 18" x 18" x 38"
450 x 452 x 960 mm
24" x 27.4" x 25"
600 x 695 x 642 mm
36" x 18" x 41"
905 x 452 x 1045 mm
24" x 27.4" x 50"
600 x 695 x 1274 mm
24" x 27.4" x 72"
600 x 695 x 1820 mm
47" x 27.4" x 72"
1200 x 695 x 1820 mm
Internal Size L/W/H 18" x 17" x 34"
448 x 425 x 870 mm
24" x 25" x 21"
598 x 645 x 524 mm
36" x 17" x 34"
903 x 425 x 870 mm
24" x 25" x 42"
598 x 645 x 1071 mm
24" x 25" x 64"
598 x 645 x 1618 mm
47" x 25" x 64"
1198 x 645 x 1618 mm
Capacity 5.8 cu. ft. (165L) 7.1 cu. ft. (202L) 11.8 cu. ft. (334L) 14.5 cu. ft. (413L) 22 cu. ft.(624L) 44.1 cu. ft. (1250L)
No. Of Shelves 3 Adjustable 2 Adjustable 3 Adjustable 3 Adjustable 5 Adjustable 5 Adjustable
Wheels N/A N/A 2 antistatic, with brakes, 2 standard 2 antistatic, with brakes, 2 standard 2 antistatic, with brakes, 2 standard 2 antistatic, with brakes, 2 standard
Power Consumption Avg 55 w/hr.; Max. 295W Avg 55 w/hr.; Max. 295W Avg 105 w/hr.; Max. 585W Avg 105 w/hr.; Max. 585W Avg 105  w/hr.; Max. 585W Avg 105  w/hr.; Max. 585W
Shipping Information 23" L x 23" W x 49" H; 120 lbs 32" L x 29" W x 34" H; 145 lbs 23" L x 41" W x 48" H; 200 lbs 32" L x 29" W x 57" H; 180 lbs 29" L x 32" W x 79" H; 235 lbs 32" L x 52" W x 79" H; 445 lbs
Humidity Range ≤5% RH
Color Black
Structure 1 mm thick carbon steel with antistatic paint
Door Compression handles, airtight magnetic sealers and antistatic glass.
Grounding Wire 1MΩ. (940 mm long)
ESD Paint 103~109 Ω. (surface resistance)

The best performance of the dry cabinet is achieved under the ambient condition of temperature below 30°C and relative humidity below 60% RH.

Use Manncorp Ultra-Dry Storage Cabinets to Protect and Store:

  • ICs and components in reels, trays, sticks, feeders or loose in bins or bags prior to placement.
  • Multilayer PCBs and bare boards meant for military and other class 3, high-reliability products.
  • Double-sided boards that have been partially assembled.
  • Moisture-absorbing materials, such as epoxy, resins, chemicals and adhesives.
  • Films and plastics used in production.
Ultra Dry Performance Chart

Performance

A. Start Installation
B. Stable
C. Door Open and Close

Ultra Dry Performance Chart - Door Has Been Opened and Closed

Door Is Opened 30 Seconds and Closed

Ultra-Dry "V" series always reaches ≤5%Rh within 30 minutes after the door is opened and closed.

Ultra-Dry 315V includes:

  • One black dry cabinet measuring 36" x 18" x 41" (905 mm x 425 mm x 870 mm) LxWxH with 11.8 cu. ft. (334 L) internal capacity
  • Two doors with compression handles and airtight magnetic sealers
  • Ultra-low humidity storage of ≤5%RH

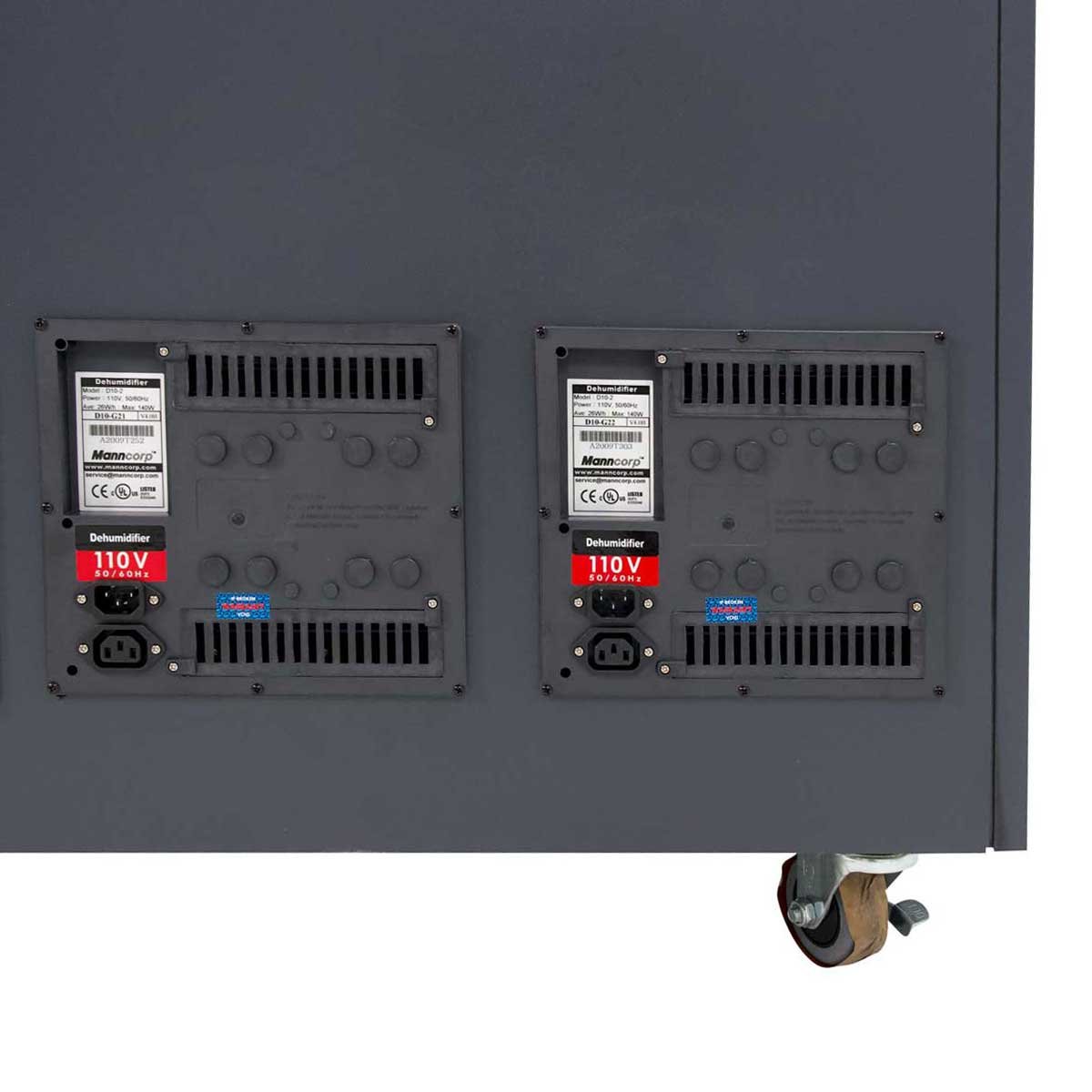

  • 2 Turbo dry modules for faster drying without compressed air
  • 2 anti-static wheels with brakes
  • 2 standard wheels
  • Anti-static paint and glass
  • 3 adjustable shelves with 200-lb capacity each
  • 1-year warranty
  • Digital RH & temperature display

Shipping Information

  • Crated Dimensions: Approx. 23" L x 41" W x 48" H (570mm L x 1020mm W x 1220mm H)
  • Gross Weight: Approx. 200 lbs. (86 kgs)
